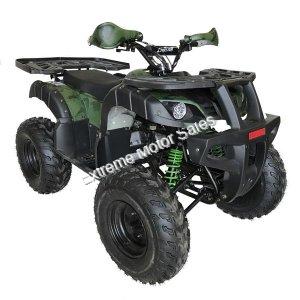

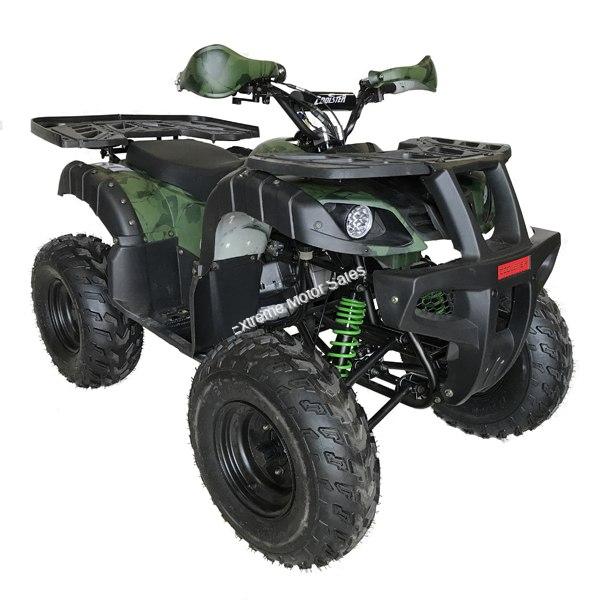

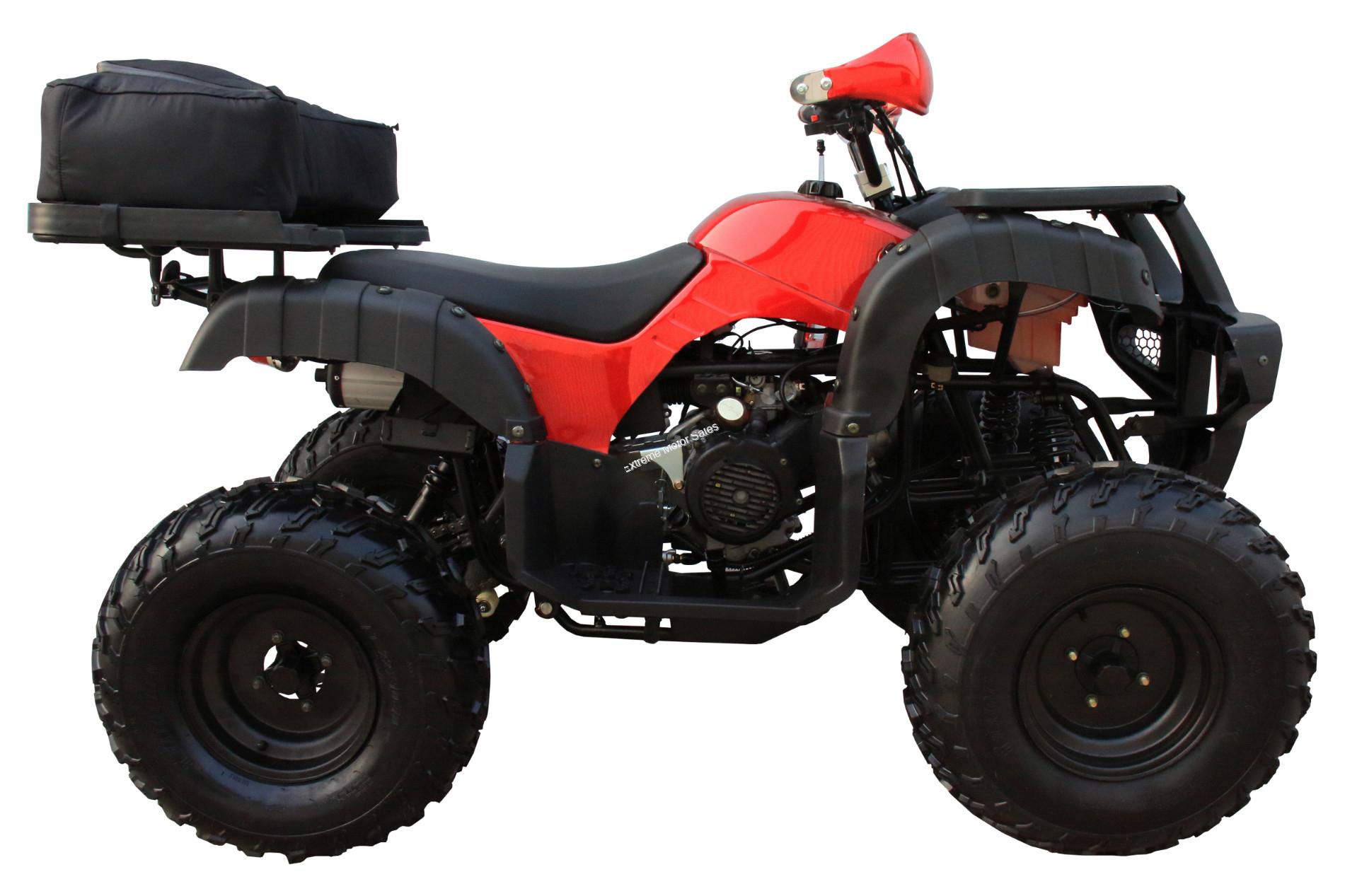

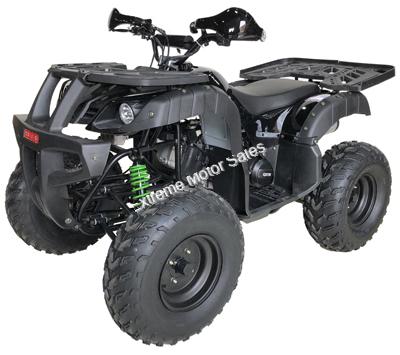

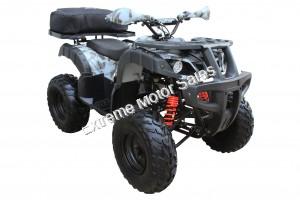

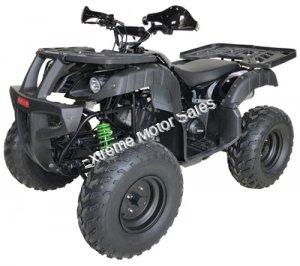

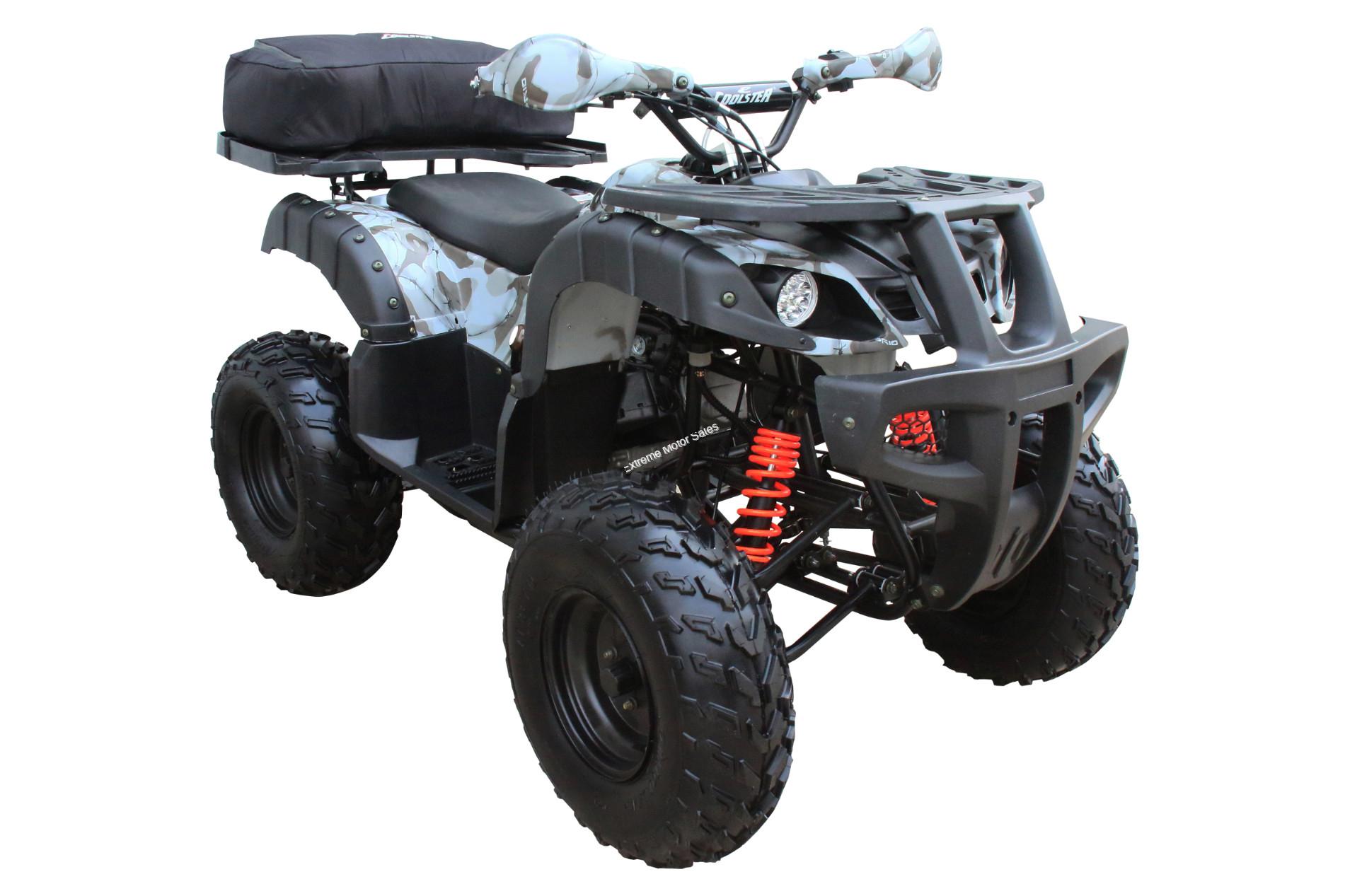

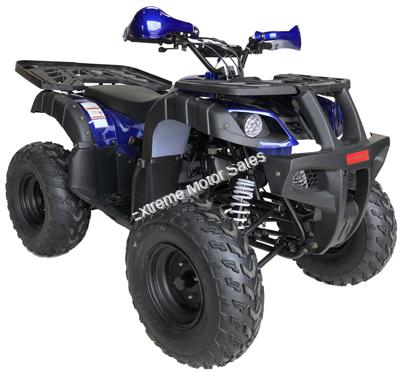

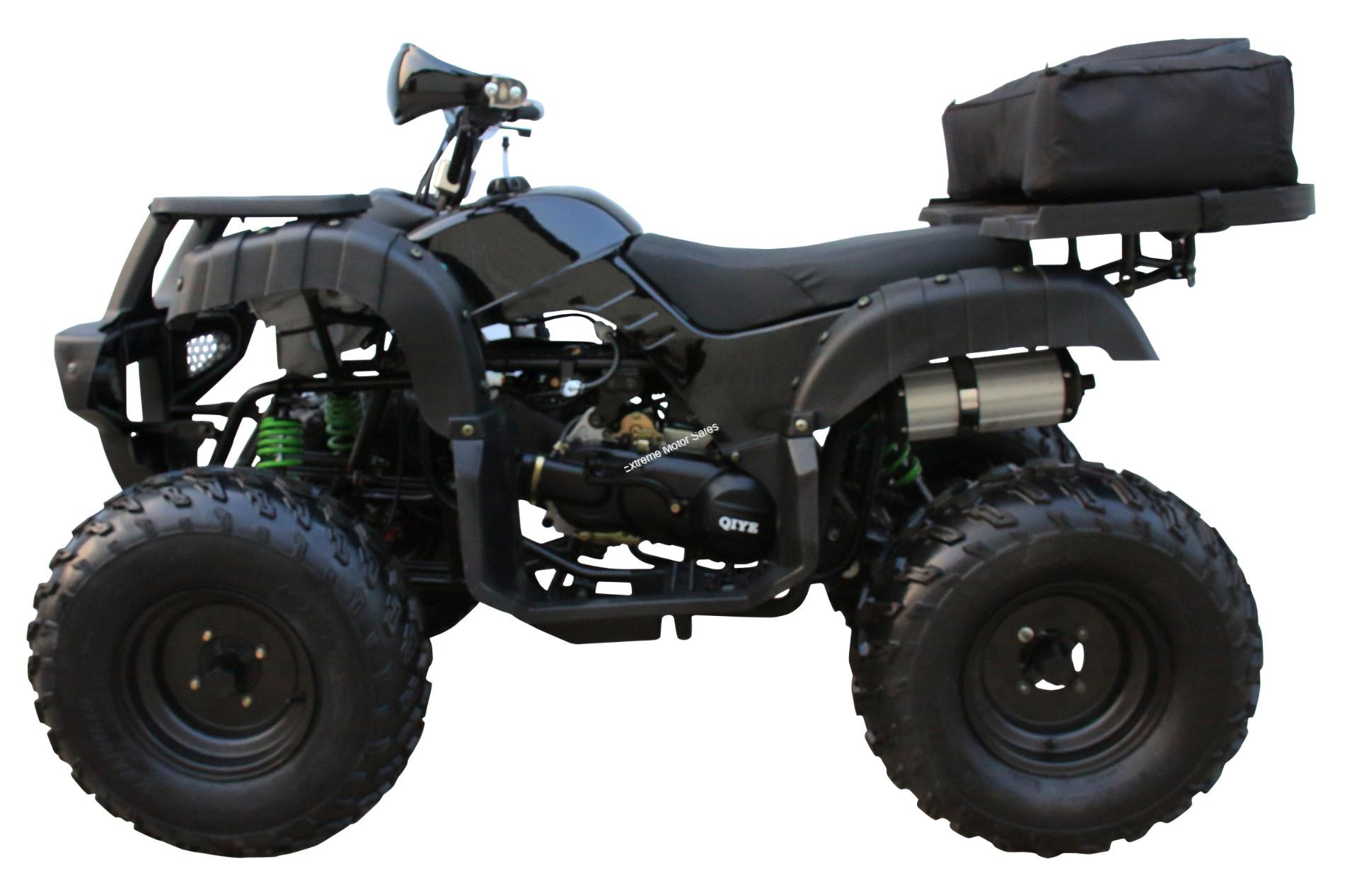

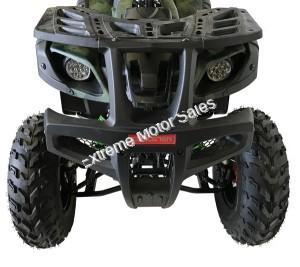

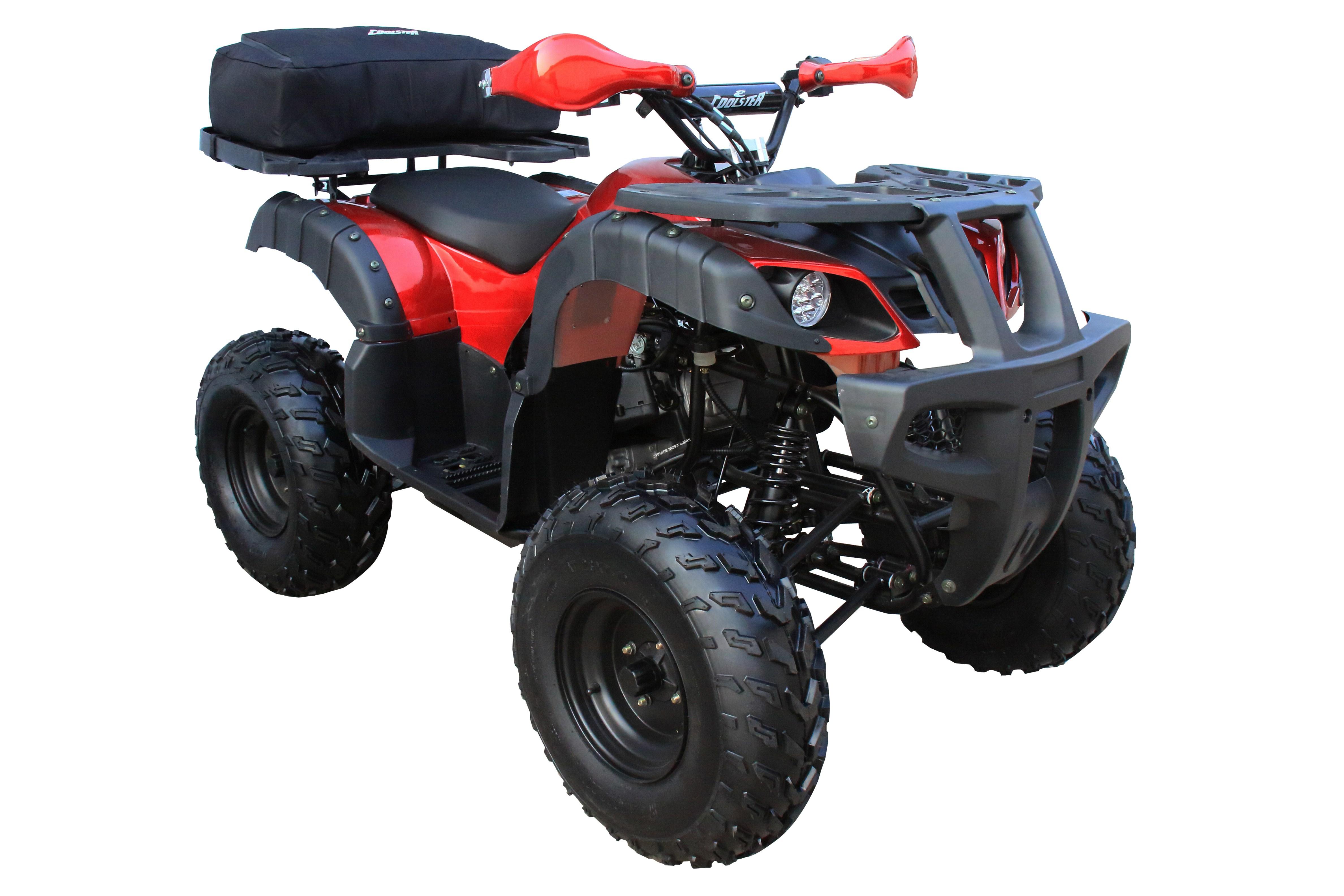

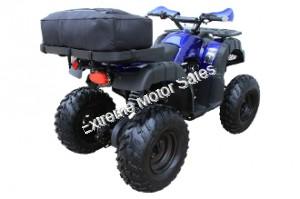

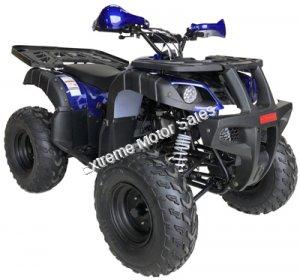

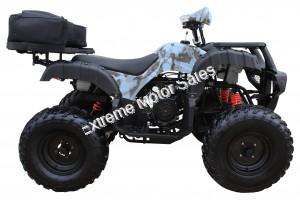

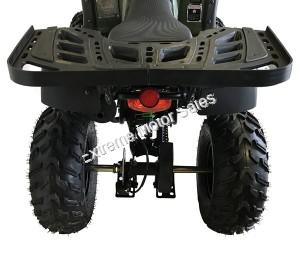

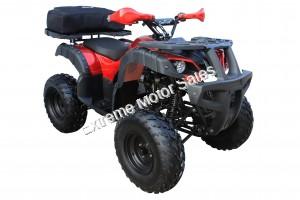

Extreme 3150DX4 UT150 150cc ATV Quad Full Size Utility 4 Wheeler
All New 3150DX4 150cc kid ATV with DX4 rack design.
The Extreme Utility 150cc ATV comes with big 23 inch and 22 inch tires and is powered by a powerful air-cooled, 4-stroke, 150cc engine.
This top quality quad comes with the performance to put riders at the head of the pack.
Features include electric start, dual front drum brakes, rear hydraulic disc brakes, chain drive, a smooth CVT automatic transmission with reverse.
The 3150DX4 four-wheeler is perfect for great off-road fun.
Every component was chosen to maximize performance on the track or in the woods and to minimize the fuss of getting there.
If you're looking for an inexpensive atv that will outlast other brands of the same size, you should check out our 150cc Utility ATV!

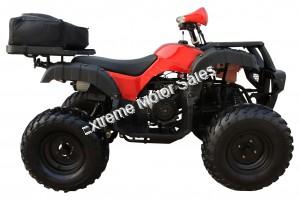

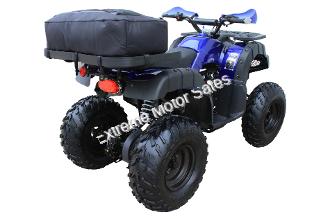

Choose from several colors.
Specifications

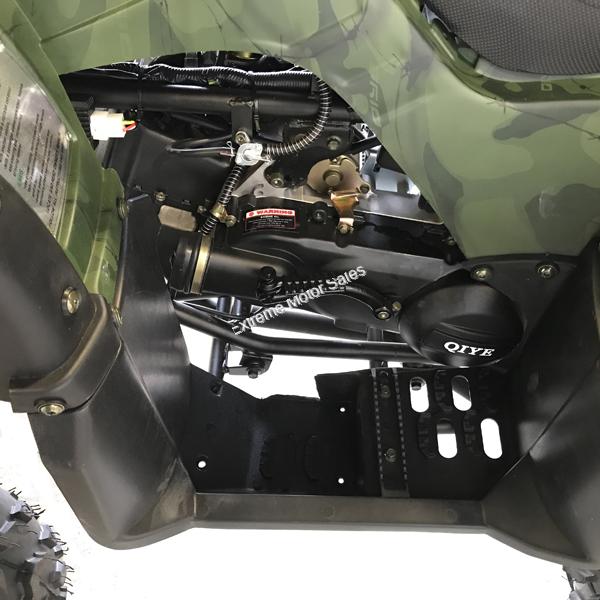

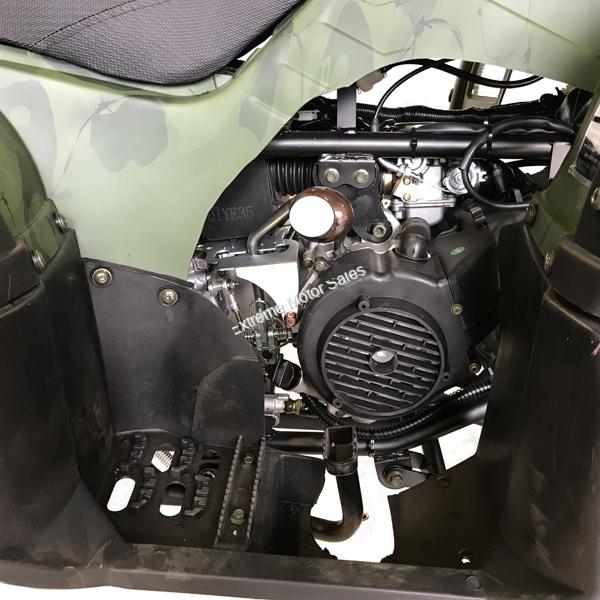

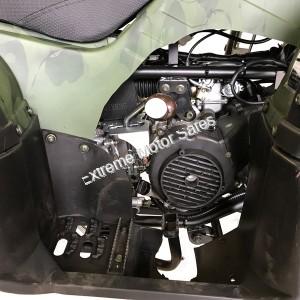

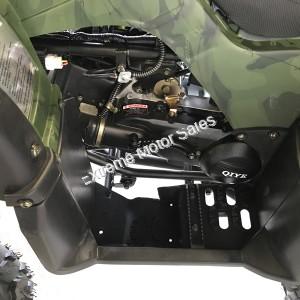

- Engine type: 150cc 4-stroke, air-cooled, single cylinder
- Transmission: Automatic
- Clutch: CVT
- Bore*stroke: 57.4 x 57.8mm
- compression ratio 9.5 : 1
- Max power: 6.0 / 8000 (Kw/r/min)
- Max torque: 7.8 / 6500 (N.m/r/min)
- Engine oil capacity: 900 ml
- Lubrication system: pressure spatter
- Starting system: electric / foot
- Ignition: CDI
- Carburetor: PD24
- Spark plug: D7TC
- Spark plug space: 0.6-0.7
- Fuel capacity: 2.06 gal. with 0.16 gal. standby
- Max speed: 36 mph+
- Shocks Front/Rear: Drum / Hydraulic spring
- Tire Front: 23 x 7-10 8psi
- Tire Rear: 22 x 10-10 8psi
- Brake Front: Hub brake / hand operated
- Brake Rear: Hydraulic disc / foot operated
- Generator: Non-contact outside the rotor flywheel

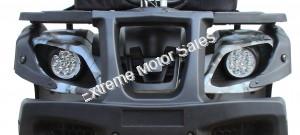

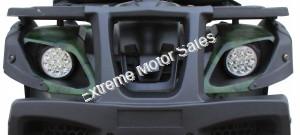

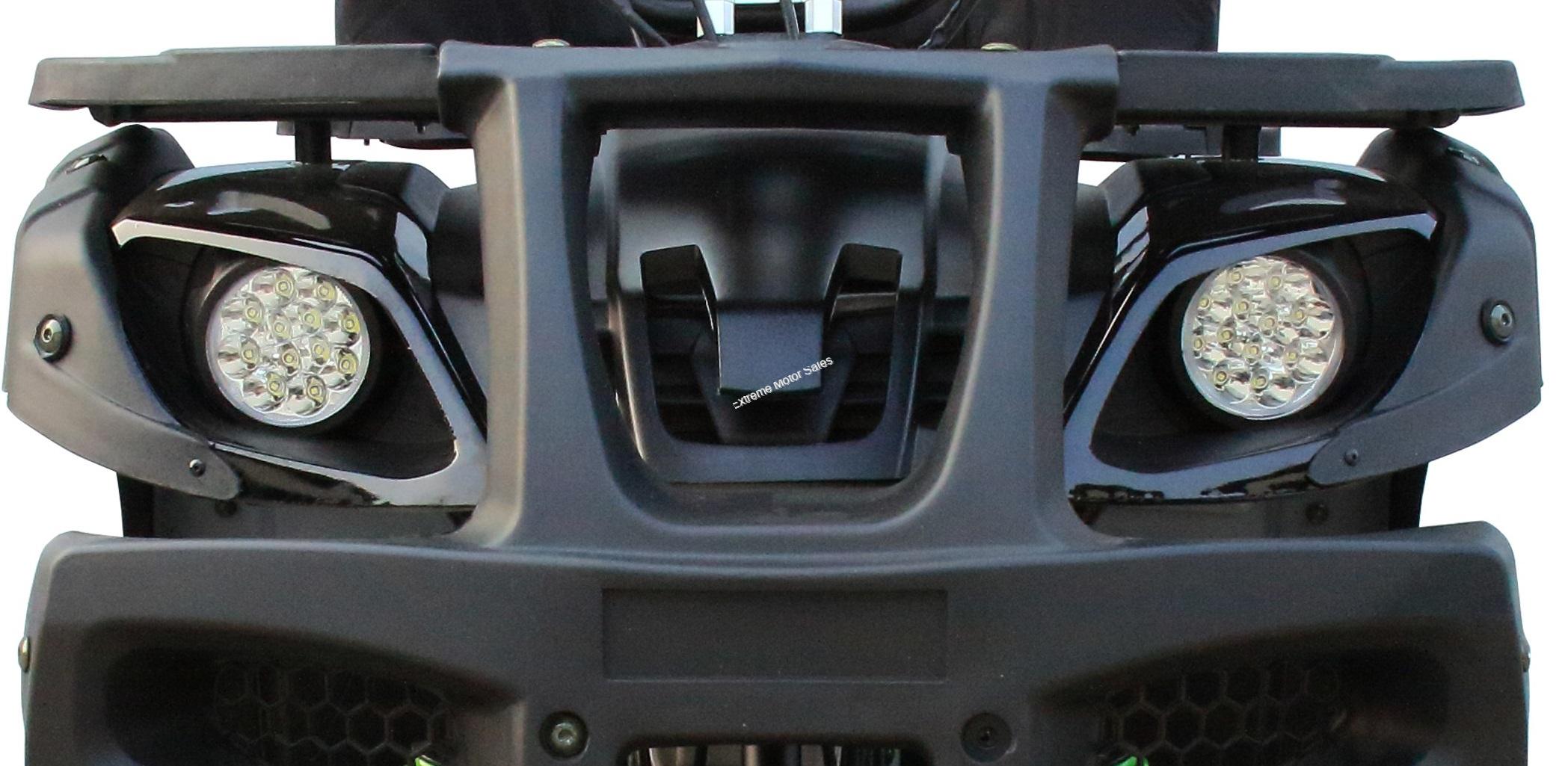

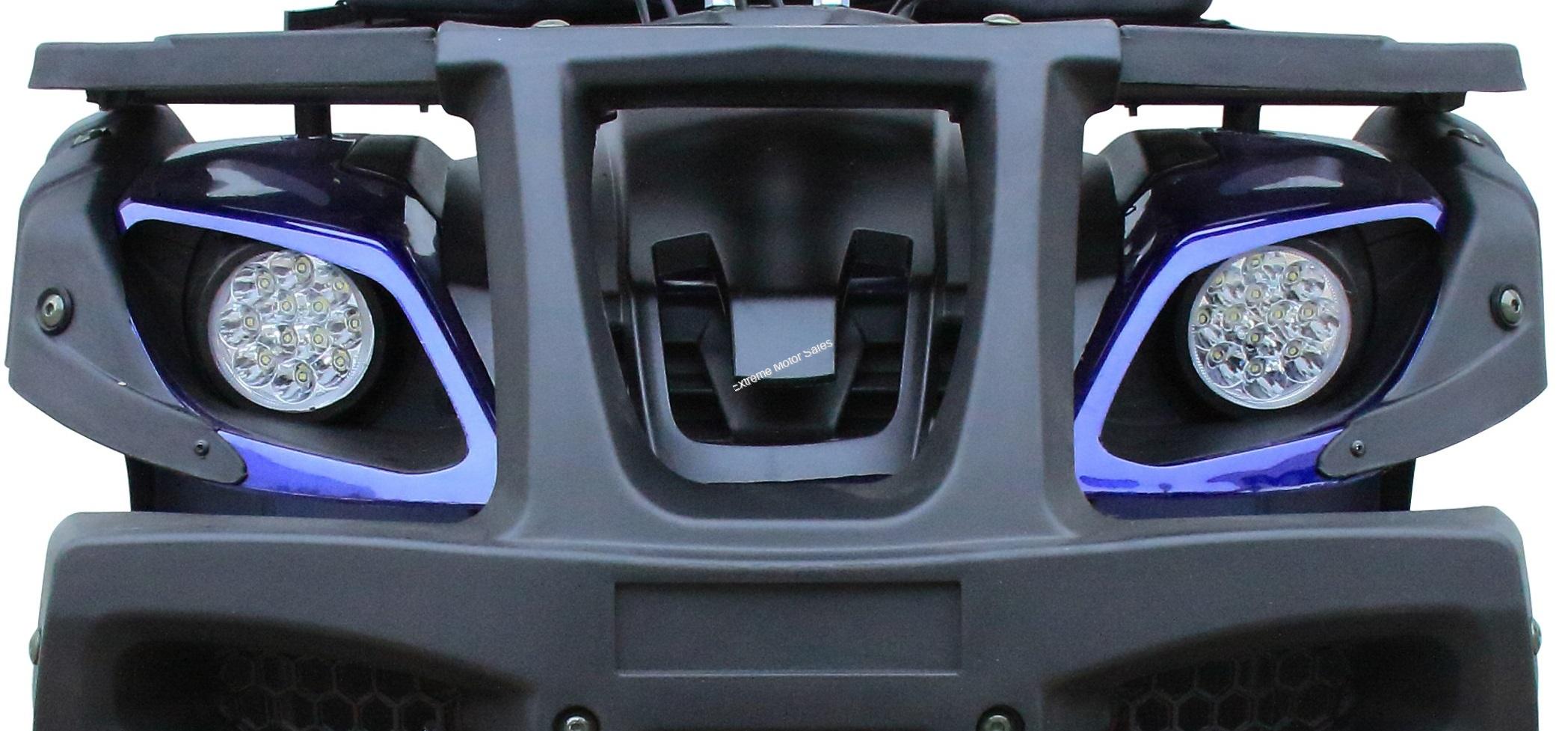

- Front light: 12V35 / 35W
- Battery: 12V 9AH
- Rear light: 12V21 / 5W
- Dimensions (inches): 73.62L x 39.76W x 41.73H
- Wheelbase: 47.83 inches
- Ground clearance: 6.5 inches
- Front gradient: 26 degrees
- Minimum turning radius: 3600 +/- 500 mm
- Steering angle: left right 40 degrees +/- 4 degrees
- Gross weight: 425.5 lbs.
- Net weight: 375 lbs.
- Wheelbase front: 32.28 inches
- Wheelbase rear: 27.95 inches
- Seat height: 29.92 inches
