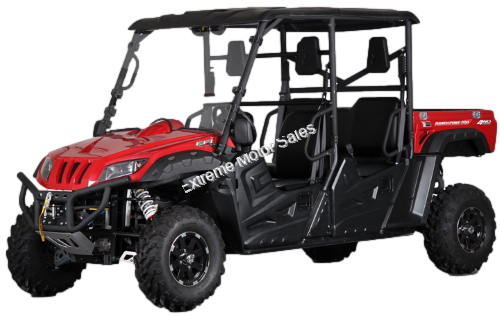

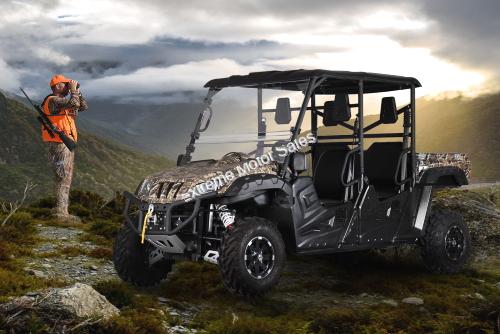

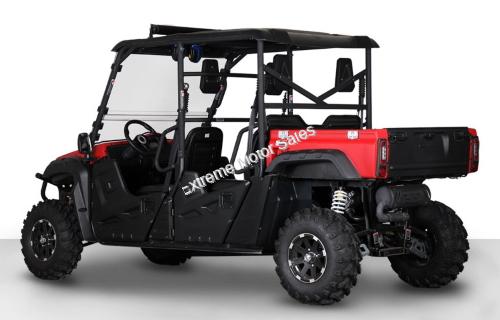

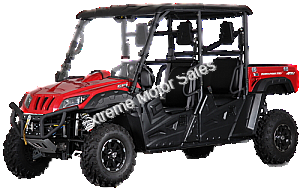

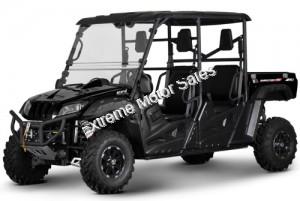

BMS Ranch Pony 700 EFI 4S 4x4 UTV Utility Vehicle Side X Side 43HP

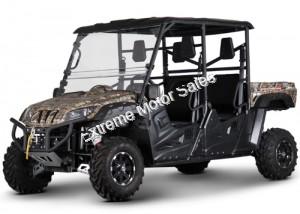

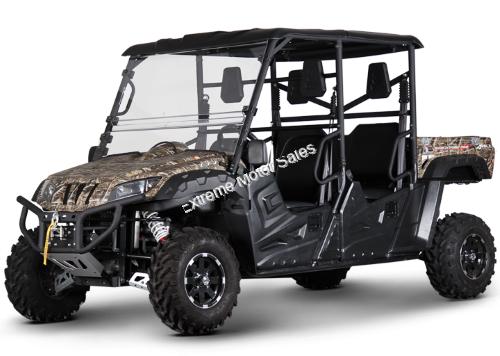

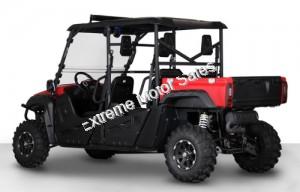

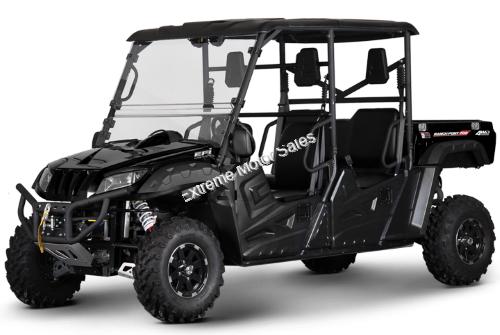

BMS RANCH PONY 700 EFI 4S 4 Seat UTV
The new BMS® Ranch Pony 4S, perfect for the family adventure with 43HP 683cc Engine EFI. Fully automatic CVT transmission with high and low gears (H-L-N-R), on demand 4WD-2WD. Innovative design, maximum performance and exceptional comfort.
Specifications:

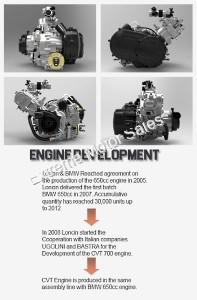

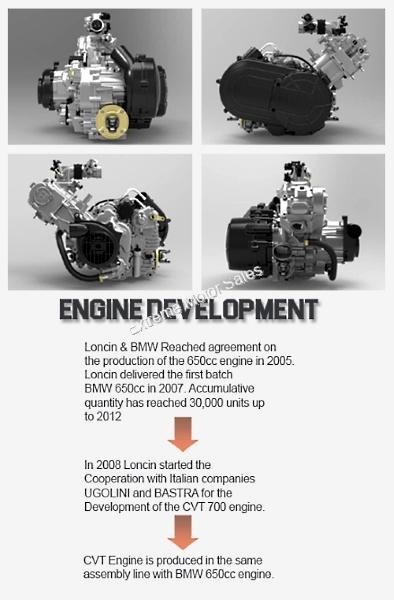

- Engine: 1 Cylinder, 4 Stroke 4 Valve SOHC
- Displacement: 686cc
- Horse Power: 43
- Bore Stroke: 102mm x 84mm
- Fuel System: EFI (Electronic Fuel Injection)

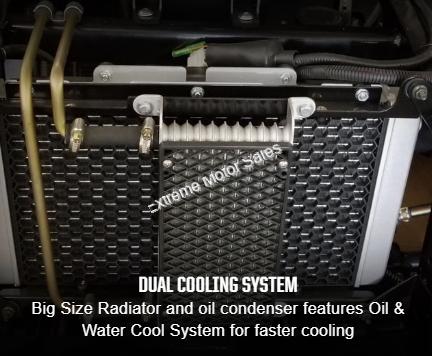

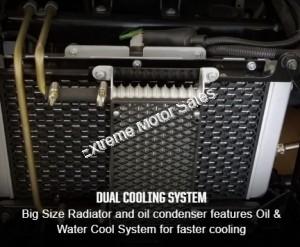

- Cooling System: Oil and Water Cooled combine

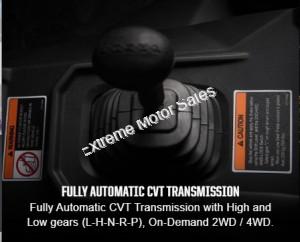

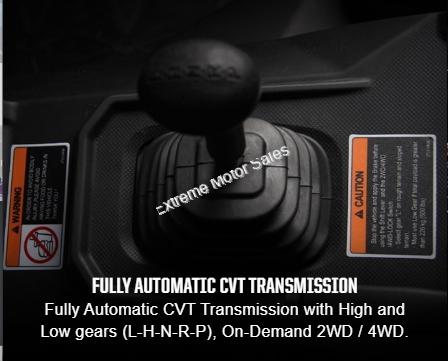

- Transmission: Fully Automatic CVT P-R-N-L-H

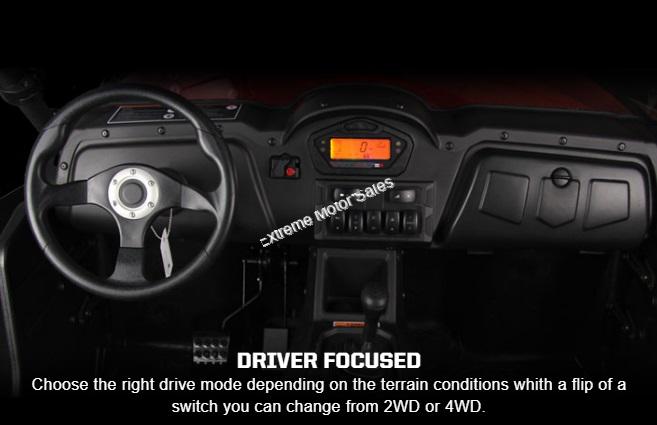

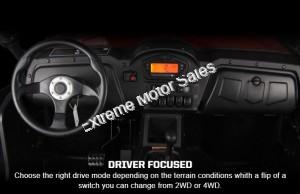

- Drive System: 4WD-2WD on Demand
- Brake System: 4-Wheel Hydraulic Disc Brake
- Engine Oil: SAE 10W/40

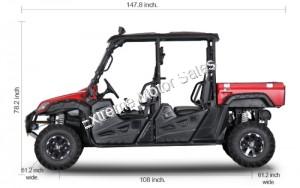

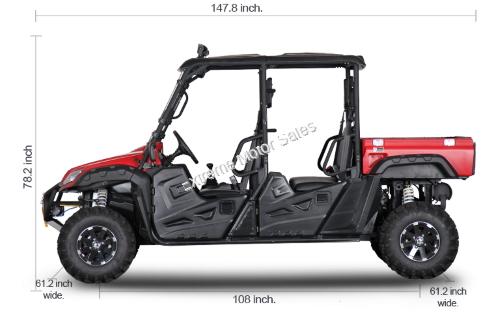

- Overall L x W x H: 147.8"x 61.2" x 78.2"
- Package size: 145.7x65.49.3
- Seat Height: 33 inch

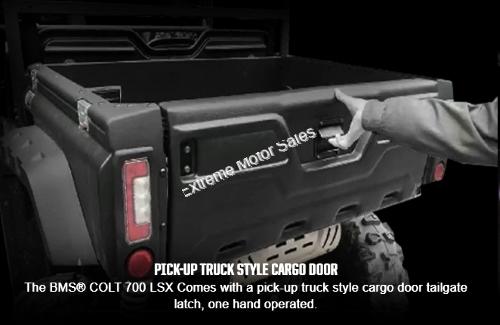

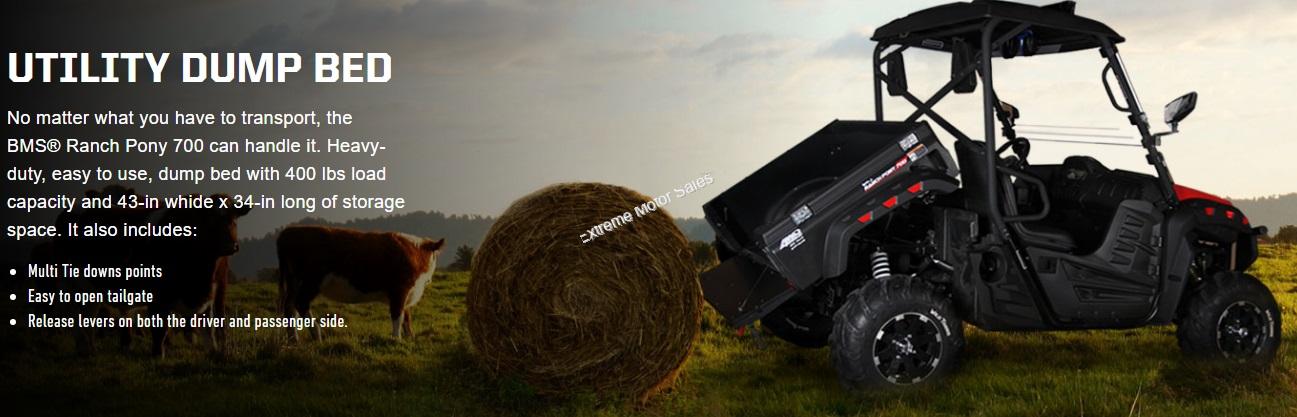

- Cargo bed size: 43x34x12
- Cargo Bed Capacity: 400 lbs
- Rider Capacity: 4-person
- Rider Load Capacity: 800 lbs
- Towing Capacity: 1300 lbs
- Gross Weight: 1,995.7 lbs
- Net Weight: 1,643 lbs.
- Fuel Capacity: 7.40 gallon
- Oil Capacity: Capacity 2.22 US qt
- Front Suspension: Independant Dual A-Arm
- Rear Suspension: Independant Dual A-Arm
- Wheel base: 87"
- Ground Clearance: 11.20"
- Climbing Ability: ≥30'
- Front Travel: 8 inch
- Rear Travel: 10.5 inch
- Front Tires: AT 25 x 8-12 Radial
- Rear Tires: AT 25 x 10-12 Radial
- Shocks Dimensions: L400 mm, W41 mm
- Ignition Type: ECU (Electronic Control Module)
- Battery: 12V x 30Amp
- Lubrication: Wet Sump

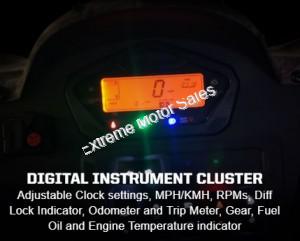

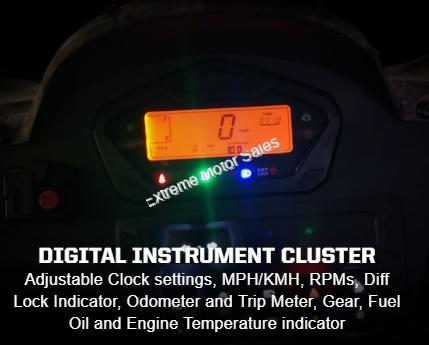

- Instrument Cluster: Digital

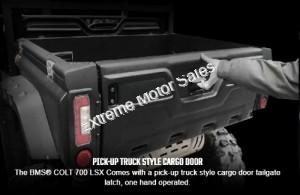

- Cargo bed operation: Manual
- Vehicle Width: 61.2"
- Emission Control: EPA/CARB
- Government Certificate: EPA/CARB
